| 1. Wall thickness is 10 to 14 cm sandwich panel consisting of two GRC layers in between a sound and heat isolation layer |  |

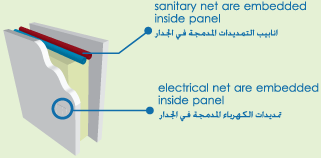

| 2. Entire electrical and sanitary net are embedded inside walls |  |
| 3. Walls height varies from 2.4 to 6.0 meters | |

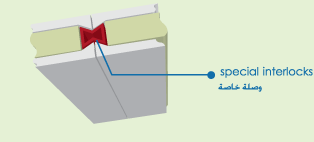

| 4. Installing walls is done by using special interlocks at the perimeter of walls and ceiling and by casting GRC mortar between the panel joints (figure 03). |  |
| 5. The panels are bearing walls. They can carry the ceiling and additional floors without the need to bearing pillars if necessary. | |
| 6. Walls height varies from 2.4 to 6.0 meters. |  |
| 7. The panels are bearing walls. They can carry the ceiling and additional floors without the need to bearing pillars if necessary. |  |
Wall panel classifications:
| Width | Height | Thickness | Weight | Compression Load |
| 120 cm | 2.4 – 3.6 m | 10 cm | 40 kg/m2 | 1.5 ton/ml |
| 120 cm | 3.6 – 6.0 m | 12 cm | 45 kg/m2 | 1.5 ton/ml |
